Four independent rooms
Separate room entrances support flexible accommodation management.
ZHUOYA / SPATIAL STUDY

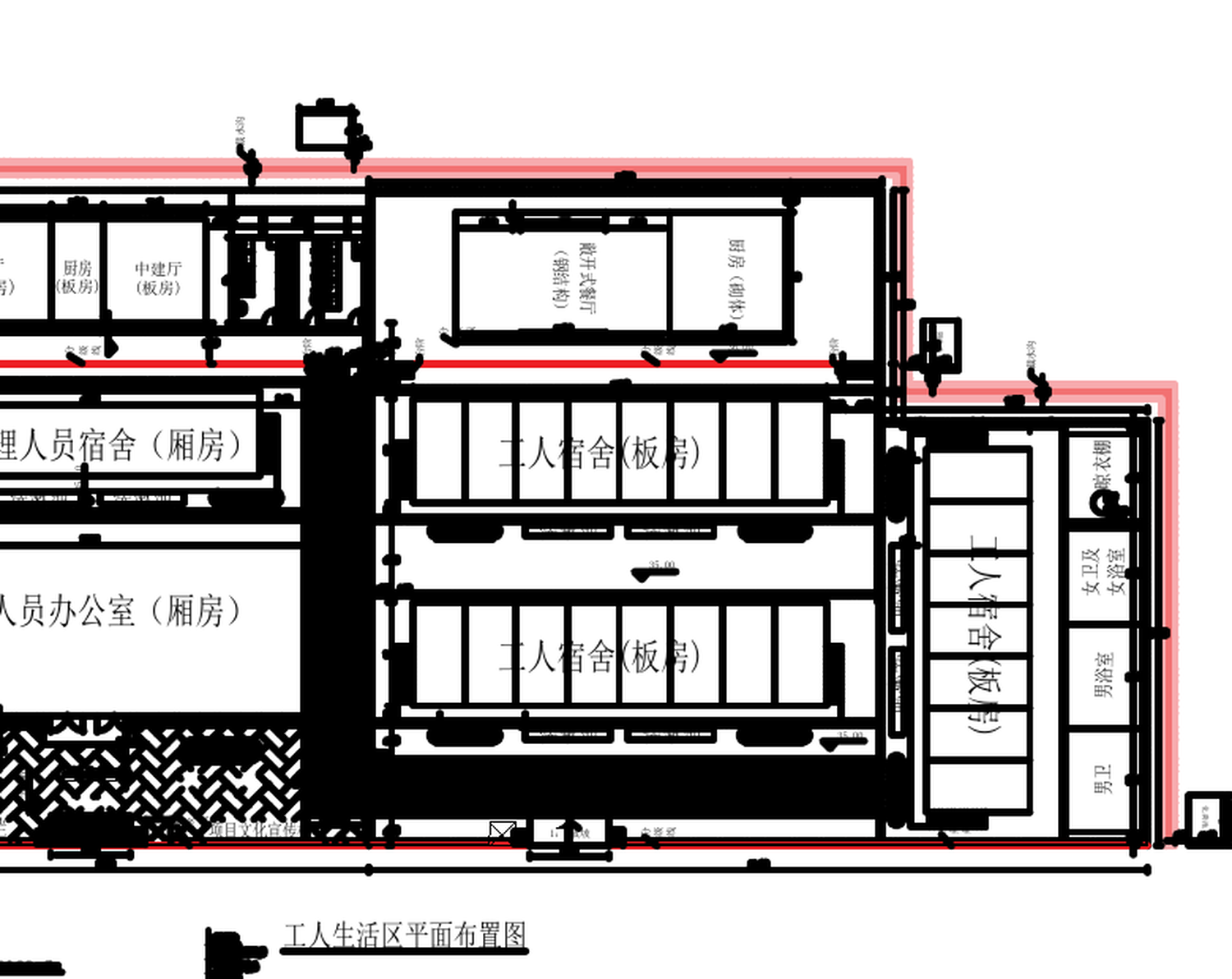

Luogang Hospital temporary dormitory zone
Exported from the supplied project CAD, showing two dormitory rows and their circulation and amenity relationships.
Original concept · not an as-built drawing- Concept envelope area
- 按项目 CAD
- Envelope / modules
- 萝岗中医院临设布置图
- Illustrative configuration
- 两排宿舍沿公共通道布置
Select drawing to enlarge
Image exported directly from the supplied project CAD; source CAD is not published online.
Beds and storage
Each room illustrates two single beds and storage; this is not an approved occupancy count.
Plan shared services
Coordinate toilets, dining and external access separately from the sleeping rooms.
CONFIGURATION
02 / Define the scope
| Item | Planning reference | Confirmation needed |
|---|---|---|
| Source | 萝岗中医院临设布置图 | Image preview only |
| Dormitory | 两排宿舍沿公共通道布置 | Confirm occupancy for the project |
| Amenities | 卫浴服务带集中设置 | Clear circulation to amenities |
| Coordination | 消防、用电、空调、排水 | Confirm for site and local rules |
03 / Prepare for your site
Site information
Provide a site plan, access photos and utility locations.
Layout confirmation
Review openings, furniture, circulation and future expansion.
Delivery scope
Confirm engineering, materials, transport, installation and handover responsibilities.
